ZC-1.8P flat mouth self loading concrete mixer

Self loading concrete mixer combines the advantages of mixer, loader and bucket lifting. It is suitable for small construction projects and projects in remote areas. One person, one machine can solve concrete mixing, transportation and unloading problems, improve efficiency and save cost.

Maximum Speed : 30km/h

Gearshift : 4 Forward +4 Back

Fuel Tank : 60 liters

Oil : 16 liters

Tank Volume : 550L

Mixing Drum Geometrical Capacity : 1600L

Drum Rotation Speed : 8-20rpm

Concrete Yield : 1.8 m³/ Batch

CHAT NOW LEAVING MESSAGE SEND EMAIL

Product Structure Description

Product Advantages

Application Scenario

Technical Parameter

Packaging And Transportation

Customer Case

Serves

Inquiry

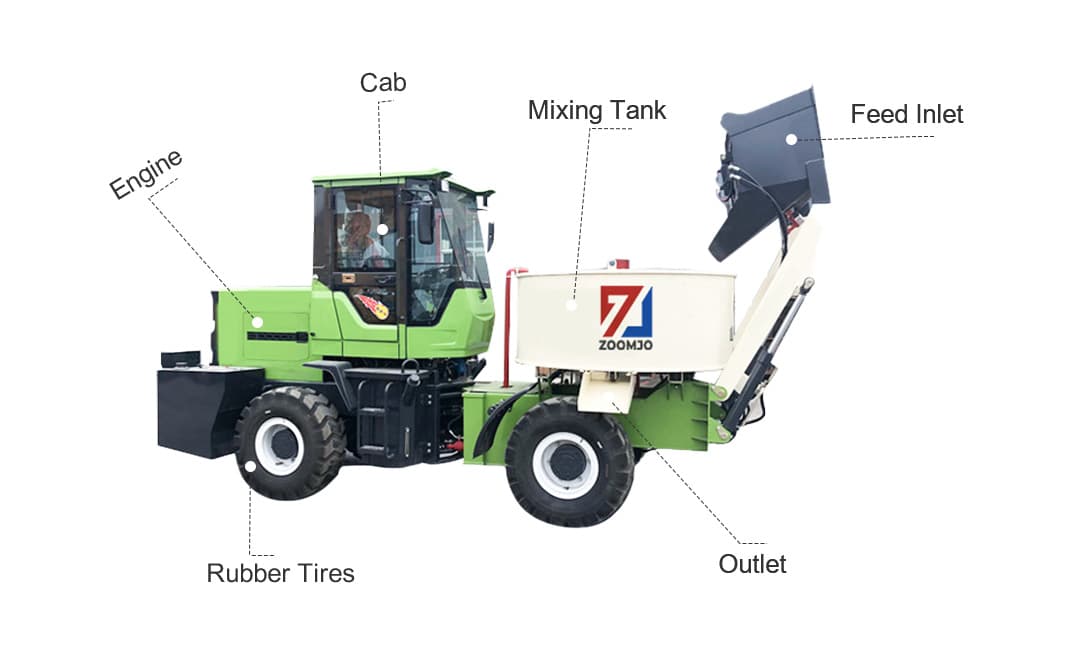

PRODUCT STRUCTURE DESCRIPTION

PRODUCT ADVANTAGES

1The main hydraulic components are all imported

2Save 5 labors at least every day

3Don\'t need electric concrete mixer, save electricity up to 100 degrees every day

4Don\'t need concrete mixer truck anymore

5Don\'t need wheel loader to load material anymore

APPLICATION SCENARIO

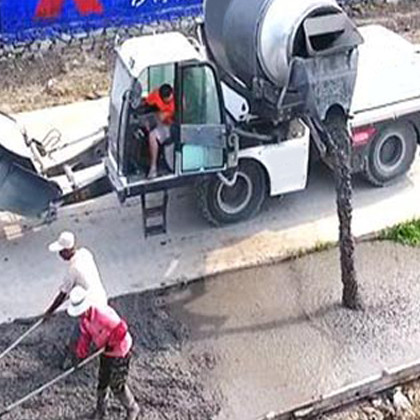

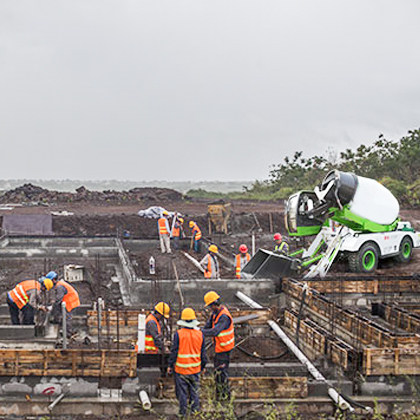

Architecture

Highway 1

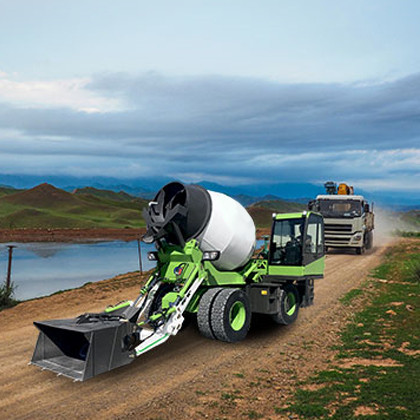

Lake

TECHNICAL PARAMETER

Model	ZC-1.8P
Overall Dimensions (L x W× H)（mm）	4420 * 1870 * 2750
Wheelbase∶ (mm)	2900
Curb Weight (kg)	4500
Drive Form	Torque converter
Maximum Speed (km / h)	30
Maximum Gradeability	30°
Minimum Turning Radius (mm)	5300
Minimum Ground Clearance (mm)	380
Model(Diesel Engine )	Yunnei 4102Turbo-charged
Rated Power:	76-78kw
Model(Gearbox)	ZL-265Power Shift Gearbox
Gearshift	4 forward+4 back
Fuel Tank:	60 liters
Total Hydraulic System Capacity	60 liters
oil:	16 liters
Dual Gear Pump∶	CBFC32/50
Hydraulic Motor:	BM5-160
Tank Volume:	550L
Water Supply	Time Relay
Drum Geometrical Capacity:	1600L
Drum Rotation Speed :	8-20 rpm
Concrete yield :	1.8m³ / Batch

PACKAGING AND TRANSPORTATION

Packing Steel wire packing,wooden boxes packing and bare machine in container also available in bulk. Shipping Usually by sea, sometimes by land, air. Delivery Time: Within 15-20 working days after receiving payments. Payment Item: 30% of total price should be paid by T/T as advanced payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
