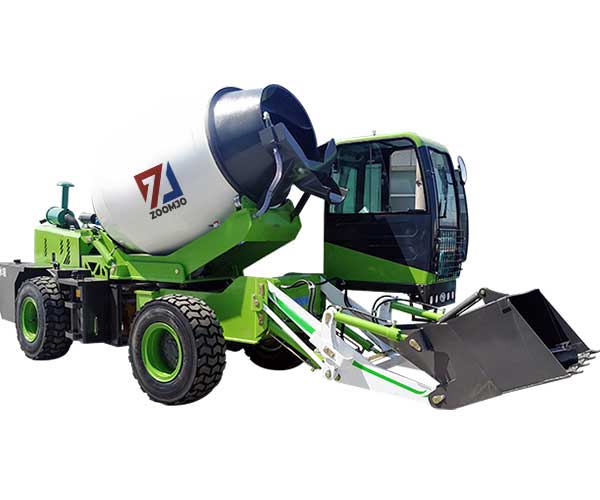

ZOOMJO - Self Loading Concrete Mixer

Self Loading Concrete Mixer

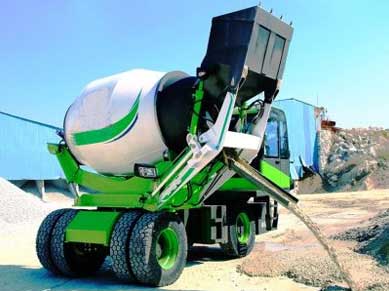

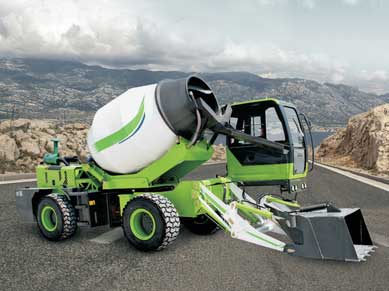

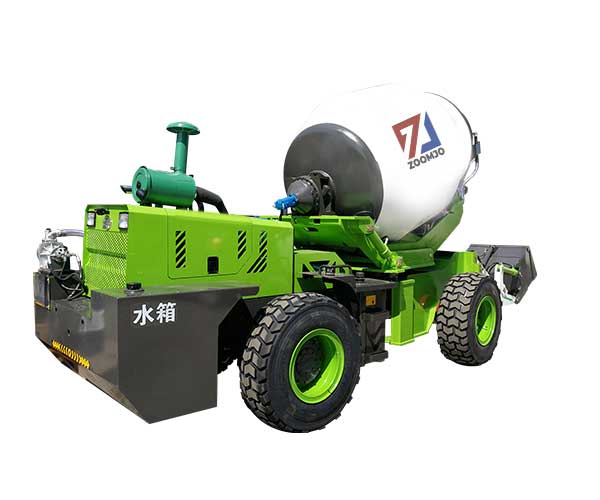

The self loading concrete mixer can automatically load, water, mix, discharge and transport, and widely used in all kinds of civil and public construction projects, subways, bridges and other construction.

Models : ZC-1.2 ZC-1.8 ZC-2.6 ZC-3.5 ZC-4.0 ZC-5.5 ZC-6.5

Concrete Yield : 1.2m³/batch 1.8m³/batch 2.6m³/batch 3.5m³/batch 4m³/batch 5.5m³/batch 6.5m³/batch

Rotation : 270° 290°

Wheels : 4 wheels 6 wheels

Maximum Speed : 30 - 42km/h

Water Tank : 400-1500L

CHAT NOW LEAVING MESSAGE SEND EMAIL

Product Structure Description

Product Advantages

Application Scenario

Technical Parameter

Packaging And Transportation

Customer Case

Serves

Inquiry

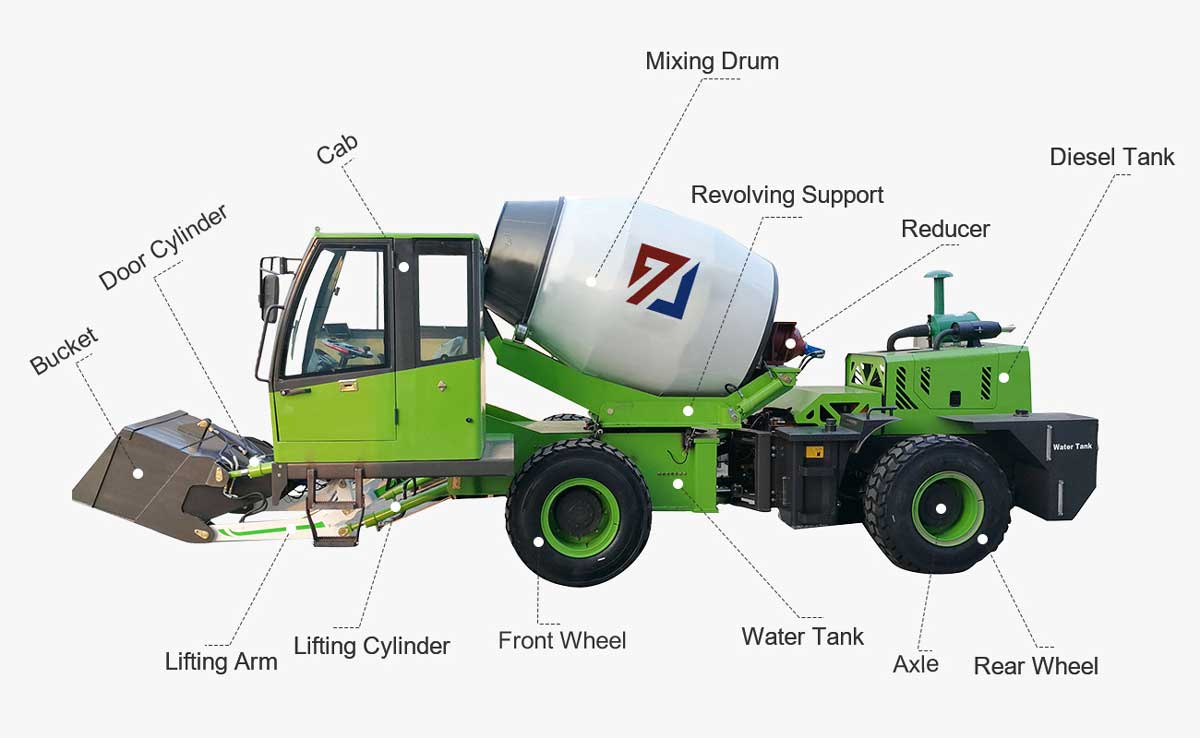

PRODUCT STRUCTURE DESCRIPTION

PRODUCT ADVANTAGES

1Cost saving. One machine for multiple uses, saving 6-8 worker, automatic loading, watering, mixing, discharging, transportation.

2Energy saving and high efficiency. Fast unloading, even mixing and no external power supply is required, which is especially convenient for

construction in remote mountainous areas and places without electricity

3Wide range of applications. suitable for different terrain construction requirements

4Flexible operation. Movable cab, 4 and 6 wheel drive, good passability, and the tank can be rotated 270 degrees or 180 degrees

5High batching accuracy. automatic calculation of material ratio

APPLICATION SCENARIO

Architecture

Highway 1

Lake

SELF LOADING CONCRETE MIXER TYPE

1.2 cbm Self loading Concrete Mixer

Drum Geometrical Capacity: 1700L

Concrete output: 4.8 m³/h

Engine Model:Yunnei 490 Turbo-Charged

Gear: 2 Forward 2 Back

Get a Free Quote

1.8 cbm Self loading Concrete Mixer

Drum Geometrical Capacity: 2680L

Concrete output: 7.2 m³/h

Engine Model:Yuchai 4102 Turbo-Charged

Gear: 2 Forward 2 Back

Get a Free Quote

2.6 cbm Self loading Concrete Mixer

Drum Geometrical Capacity: 3580L

Concrete output: 10.4 m³/h

Engine Model:Yuchai 4102 Turbo-Charged

Gear: 4 Forward 4 Back

Get a Free Quote

3.5 cbm Self loading Concrete Mixer

Drum Geometrical Capacity: 4740L

Concrete output: 14 m³/h

Rated Power:85 Kw

Gear: 2 Forward 2 Back, Front Wheels Steering

Get a Free Quote

4.0 cbm Self loading Concrete Mixer

Drum Geometrical Capacity: 6000L

Concrete output: 16 m³/h

Rated Power:85 Kw

Gear: 2 Forward 2 Back, Front Wheels Steering

Get a Free Quote

5.5 cbm Self loading Concrete Mixer

Drum Geometrical Capacity: 7800L

Concrete output: 22 m³/h

Engine Model: FAW XICHAI 6110 Turbo-Charged

Gear: 2 Forward 2 Back, Front Wheels Steering

Get a Free Quote

TECHNICAL PARAMETER

Model	ZC-1.2	ZC-1.8	ZC-2.6	ZC-3.5	ZC-4	ZC-5.5	ZC-6.5
Overall Dimensions (L x W× H)	7300×1800×3450	7300×2650×3750	7800×2680×4100	7830×2680×4170	7640×2870×4750	8450×3100×4580	8450×3050×4830
Wheelbase (mm)	2560	2600	2800	2900	2480	3350	2850
Curb Weight (kg)	4920	6000	7200	7800	9000	11200	12520
Tyres		23.5/70-16	1670-20	1670-20	1670-20	12R-22.5	12R-22.5
Drive Form	Torque converter	Torque converter	Torque converter	Torque converter	Torque converter	Torque converter	Torque converter
Maximum Speed (km / h)	30	30	30	30	35	42	40
Maximum Gradeability	30°	30°	30°	30°	45°	45°	45°
Minimum Turning Radius (mm)	4700	5270	5300	5300	4800	6200	4800
Rotation		270°	270°	270°	290°	270°	290°
Minimum Ground Clearance (mm)	280	280	380	380	330	380	350
Model（Diesel Engine）	Yunnei 490 Turbo-charged	Yunnei 490 Turbo-charged	Yuchai 4102Turbo-charged	Yuchai 4105Turbo-charged	Yuchai 4108Turbo-charged	Yuchai 6105 Turbo-charged	Yuchai 6105 Turbo-charged
Rated Power	55kw	78kw	75kw	85kw	91kw	92kw	92kw
Model（Gearbox）	ZL-265Power Shift Gearbox	ZL-265Power Shift Gearbox	ZL-280Power Shift Gearbox	ZL-280Power Shift Gearbox	ZL-315 Power Shift Gearbox	ZL-428 Power Shift Gearbox	ZL-428 Power Shift Gearbox
Gearshift	2 Forward + 2Back	2 Forward +2 Back	4 Forward +4 Back	4 Forward +4 Back	4 Forward +4 Back	4 Forward +4 Back	4 Forward +4 Back
Fuel Tank	63liters	63liters	75liters	120liters	230liters	180 liters	370 liters
Total Hydraulic System Capacity	63liters	63liters	75liters	120liters	170 liters	180 liters	278 liters
oil	16 liters	16 liters	16 liters	16 liters	16 liters	16 liters	16 liters
Reducer	KY07-2-0	HJ80-43	HJ80-43	HJ80-43	KY07-5-J	HJ80-43	HJ80-43
Pump	Dual Gear Pump:50/32	Dual Gear Pump:50/32	Dual Gear Pump:80/40	Dual Gear Pump:80/40	Double gear 80/40，Rexroh Plunger pump	Interpump90Plunger pump	Interpump90Plunger pump
Hydraulic Motor	Cycloid125	Cycloid125	Interpump56Plunger motor	Interpump56Plunger motor	56Interpump56 /Rexroh 56	Interpump56Plunger motor	Interpump90Plunger motor
Tank Volume	400L	400L	500L	620L	780L	840L	1465L
Drum Geometrical Capacity	1700L	2680L	3580L	4740L	6000L	7800L	9000L
Drum Rotation Speed	Drum Rotation Speed 13rpm	Drum Rotation Speed 13rpm	Drum Rotation Speed 13-20 rpm	Drum Rotation Speed 18-21 rpm	Drum Rotation Speed 18-21 rpm	20rpm	16.5 rpm
Concrete yield	1.2m³ / Batch	1.8m³ / Batch	2.6m³ / Batch	3.5m³ / Batch	4.0m³ / Batch	5.5m³ / Batch	6.5m³ / Batch
Wheels	4	4	4	4	6	6	6

PACKAGING AND TRANSPORTATION

Packing Steel wire packing,wooden boxes packing and bare machine in container also available in bulk. Shipping Usually by sea, sometimes by land, air. Delivery Time: Within 15-20 working days after receiving payments. Payment Item: 30% of total price should be paid by T/T as advanced payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
