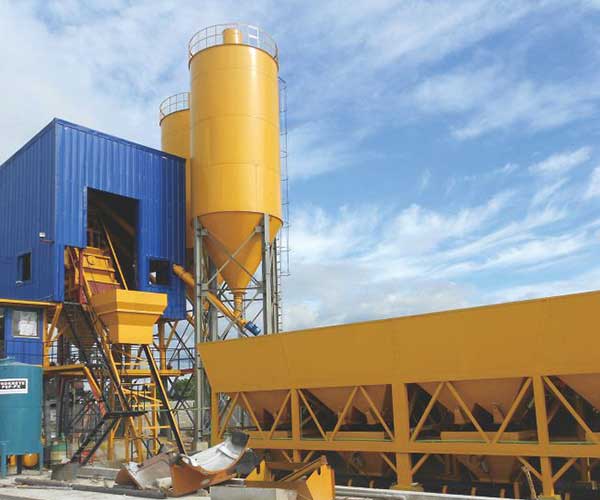

Stationary Concrete Batching Plant

Concrete batching plant is is a fully automatic concrete mixing equipment consisting of 5 major systems such as mixer, material weighing system, material conveying system, material storage system and control system and other ancillary facilities.A complete set of equipment for supplying concrete in a concentrated manner than by a mixer.

Productivity : 25-240m³/h

Mixer discharging capacity : 0.5-4m³

Feeding Mode : Lift Hopper Belt Conveyor

Aggregate batching machine : PLD800-6400

Discharging height : 3.8-4.3m

CHAT NOW LEAVING MESSAGE SEND EMAIL

Product Structure Description

Product Advantages

Application Scenario

Technical Parameter

Packaging And Transportation

Customer Case

Serves

Inquiry

PRODUCT STRUCTURE DESCRIPTION

PRODUCT ADVANTAGES

1Lower aggregate capacity for lower energy consumption.

2Modular design make the operation convenient and fast.

3Excellent environmental protection, dust collection system and anti-noise design.

4Accurate weighing system (aggregate, cement, water, additive).

APPLICATION SCENARIO

House Building

Road Construction

Bridge construction

Tunnels Construction

Water Conservancy Construction

Construction

HOT MODELS

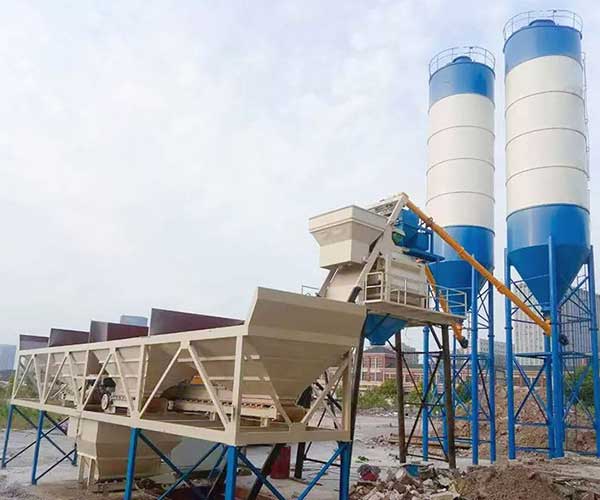

HZS /ZJ25 Stationary Concrete Batching Plant

Productivity:25m³/h

Feeding mode: Lift Hopper

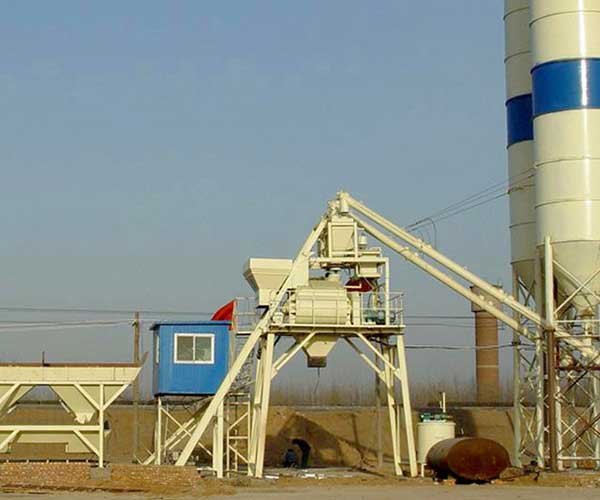

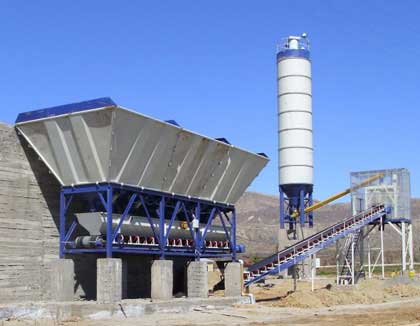

HZS /ZJ35 Stationary Concrete Batching Plant

Productivity:35m³/h

Feeding mode: Lift Hopper

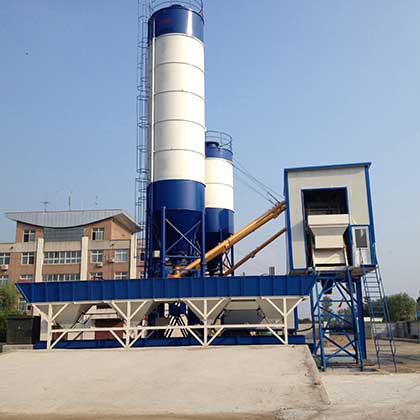

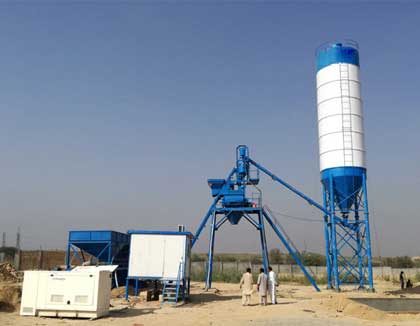

HZS /ZJ50 Stationary Concrete Batching Plant

Productivity:50m³/h

Feeding mode: Lift Hopper

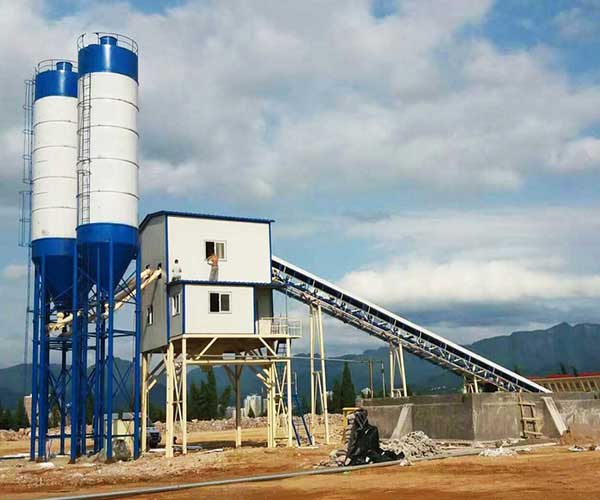

HZS /ZJ60 Stationary Concrete Batching Plant

Productivity:60m³/h

Feeding mode: Belt Conveyor

HZS /ZJ75 Stationary Concrete Batching Plant

Productivity:75m³/h

Feeding mode: Lift Hopper

HZS /ZJ90 Stationary Concrete Batching Plant

Productivity:90m³/h

Feeding mode: Belt Conveyor

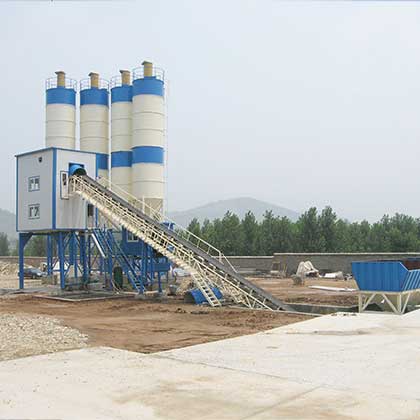

HZS /ZJ120 Stationary Concrete Batching Plant

Productivity:120m³/h

Feeding mode: Belt Conveyor

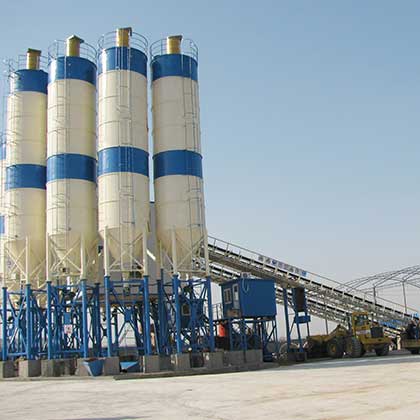

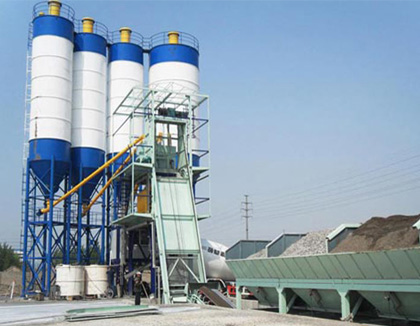

HZS /ZJ180 Stationary Concrete Batching Plant

Productivity:180m³/h

Feeding mode: Belt Conveyor

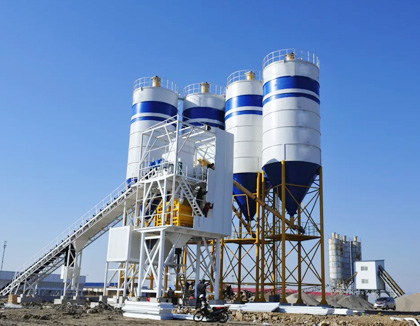

HZS /ZJ240 Stationary Concrete Batching Plant

Productivity:240m³/h

Feeding mode: Belt Conveyor

TECHNICAL PARAMETER

Model	HZS / ZJ25	HZS / ZJ35	HZS / ZJ50	HZS / ZJ60	HZS / ZJ75	HZS / ZJ90	HZS / ZJ120	HZS / ZJ180	HZS / ZJ240
Productivity	25m³/h	35m³/h	50m³/h	60m³/h	75m³/h	90m³/h	120m³/h	180m³/h	240m³/h
Concrete mixer	JS 500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000	JS3000	JS4000
Mixer discharging capacity	0.5m³	0.75m³	1m³	1m³	1.5m³	1.5m³	2m³	3m³	4m³
Feeding Mode	Lift Hopper	Lift Hopper	Lift Hopper	Belt Conveyor	Lift Hopper	Belt Conveyor	Belt Conveyor	Belt Conveyor	Belt Conveyor
Aggregate batching machine	PLD800	PLD1000	PLD1600	PLD1600	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400
Kinds of aggregate	2/3/4	2/3/4	3/4	3/4/5	3/4	3/4/5	3/4/5	3/4/5	3/4/5
Max aggregate size	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm
Discharging height	3.8m	4.1m	4.1m	4.1m	4.1m	4.1m	4.3m	4.3m	4.3m
Aggregate weighing accuracy	±2%	±2%	±2%	±2%	±2%	±2%	±2%	±2%	±2%
Cement weighting accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Water weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Additive weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
weight	10t	13.5t	18.5t	28t	25t	40t	65t	88t	98t
General installed power	≈65kw	≈75kw	≈100kw	≈110kw	≈140kw	≈160kw	≈220kw	≈290kw	≈340kw

PACKAGING AND TRANSPORTATION

Packing Steel wire packing,wooden boxes packing and bare machine in container also available in bulk. Shipping Usually by sea, sometimes by land, air. Delivery Time: Within 15-20 working days after receiving payments. Payment Item: 30% of total price should be paid by T/T as advanced payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
