Mobile Concrete Batching Plant

Mobile concrete batching plant is a portable, efficient and reliable concrete production plant. It is a mixing plant that concentrates the storage, weighing, conveying, mixing, discharging and fully automatic control system of raw materials on a mobile frame.Widely used for projects requiring frequent transfers, short construction periods and small concrete requirements. Zoomjo supply mobile batching plant with capacities ranging from 25-120m3/h.

Productivity : 25-120m³/h

Mixer discharging capacity : 0.5-2m³

Discharging Height : 3.8m

Aggregate bins capacity : 2*6m³- 2*12m³

Power : 50-160kw

CHAT NOW LEAVING MESSAGE SEND EMAIL

Product Structure Description

Product Advantages

Application Scenario

Technical Parameter

Packaging And Transportation

Customer Case

Serves

Inquiry

PRODUCT STRUCTURE DESCRIPTION

Currently the popular mobile concrete batching plant on the market are divided into 2 main types: drum type concrete batching plant(portable concrete batching plant) and trailer type mobile concrete batching plant.

1. Chassis: the chassis contains towing pins for trucks and parking legs; The upper part of the chassis can accommodate mixers, cement machine admixture weighing and batching devices, and the lower part of the chassis is equipped with mobile wheels, which can be moved.

2、Control unit: the control room is under the chassis of the main machine and can be equipped with an automatic control system, the working state can be adjusted, transferring and transporting is more convenient, without dismantling the whole machine equipment and easy to move.

3、Batching equipment. The upper part is storage hopper, storage hopper has 2-4 bins, larger capacity, can be operated automatically. Below the batching machine is the weighing hopper, which can proportion and weigh a variety of aggregates, and the batching is more accurate.

4、External supporting equipment. External supporting equipment is cement silo and screw conveyor. The peripheral parts are integral parts no matter when working or transporting, no need to dismantle, therefore can be transported and disassembled as a whole.

5. Mixer. The mobile concrete mixing plant is usually equipped with a JS type forced double horizontal shaft concrete mixer, which can quickly and evenly mix fluidity and dry hard concrete.

PRODUCT ADVANTAGES

1，Easy installation and commissioning. The mobile mixing plant is delivered as a fully pre-connected complete set of equipment, which reduces the time required for installation and commissioning of the plant.

2， Large capacity & uniform mixing. The JS double horizontal shaft forced mixer with continuous running capability, comprehensive mixing track, powerful mixing movement and fast and uniform mixing

3，Easy moving, flexible disassembly and assembly. The mobile mixing plant occupies a small area, easy to move around, and can be transported and dismantled as a whole with external equipment.

4，Save on concrete transport costs. The mobile concrete mixing plant produces concrete at the construction site, and the pumping equipment can transport the produced concrete directly to the pouring site.

APPLICATION SCENARIO

Bridge Construction

Guardrail

Housing Construction

Railway

Road Construction

Tunnel

MORE MODELS

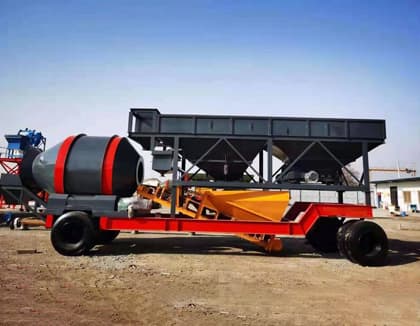

ZJY-25 Portable Concrete Plant With 2 Bins

Mixer Capacity: 25-60 m³/h

Mixer: JS 500-1000

Chassis Size: 8410×2000×780 mm

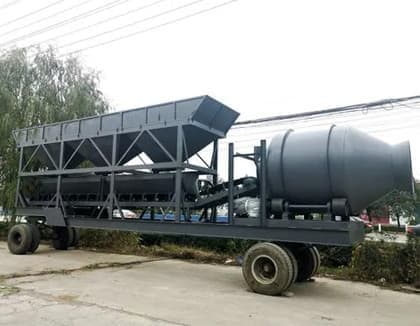

ZJY-35 Portable Batching Plant With 3 Bin

Mixer Capacity: 45-60 m³/h

Mixer: JS 500-1500

Chassis Size: 11100×2000×780 mm

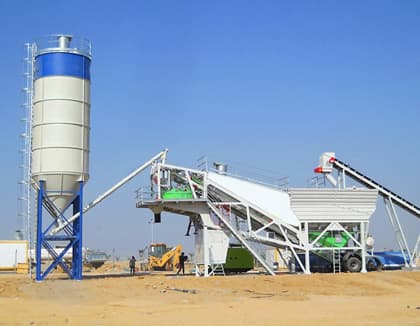

ZJY-50 Mobile Concrete Batching Plant

Mixer Capacity: 50 m³/h

Mixer: JS 1000

Aggregate bins Capacity:2*8m³

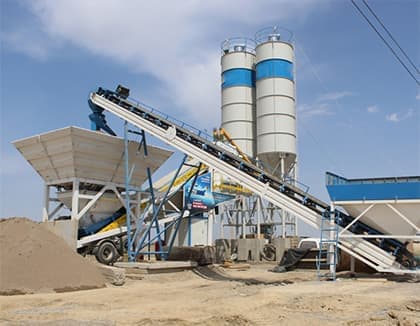

ZJY-60 Mobile Concrete Batching Plant

Mixer Capacity: 60 m³/h

Mixer: JS 1000

Aggregate bins Capacity:2*10m³

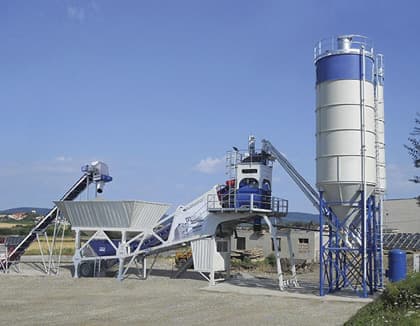

ZJY-90 Mobile Concrete Batching Plant

Mixer Capacity: 90 m³/h

Mixer: JS 1500

Aggregate bins Capacity: 2*12m³

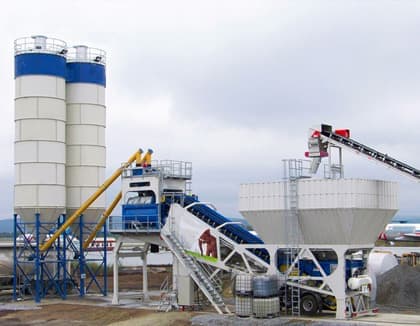

ZJY-120 Mobile Concrete Batching Plant

Mixer Capacity: 90 m³/h

Mixer: JS 1500

Aggregate bins Capacity: 2*12m³

TECHNICAL PARAMETER

Model	ZJY25	ZJY35	ZJY50	ZJY60	ZJY75	ZJY90	ZJY120
Mixer	JS 500	JS 750	JS 1000	JS 1000	JS 1500	JS 1500	JS 2000
Mixer Capacity	0.5m³	0.75m³	1m³	1m³	1.5m³	1.5m³	2m³
Output	25m³/h	35m³/h	50m³/h	60m³/h	75m³/h	90m³/h	120m³/h
Aggregate bins Capacity	2*6m³	2*8m³	2*8m³	2*10m³	2*10m³	2*12m³	2*12m³
Discharging Height	3.8m	3.8m	3.8m	3.8m	3.8m	3.8m	3.8m
Aggregate Weighing Accuracy	±2%	±2%	±2%	±2%	±2%	±2%	±2%
Cement Weighing Accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Water Weighing Accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Additive Weighing Accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Max.Aggregate Size	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm	80/100mm
Max hauling speed	8km/h	8km/h	8km/h	8km/h	8km/h	8km/h	8km/h
Power	≈60.8kw	≈72.3kw	≈92kw	≈92kw	≈102kw	≈120kw	≈160kw
Total weight	14.66t	22t	26t	26t	29t	33t	38t

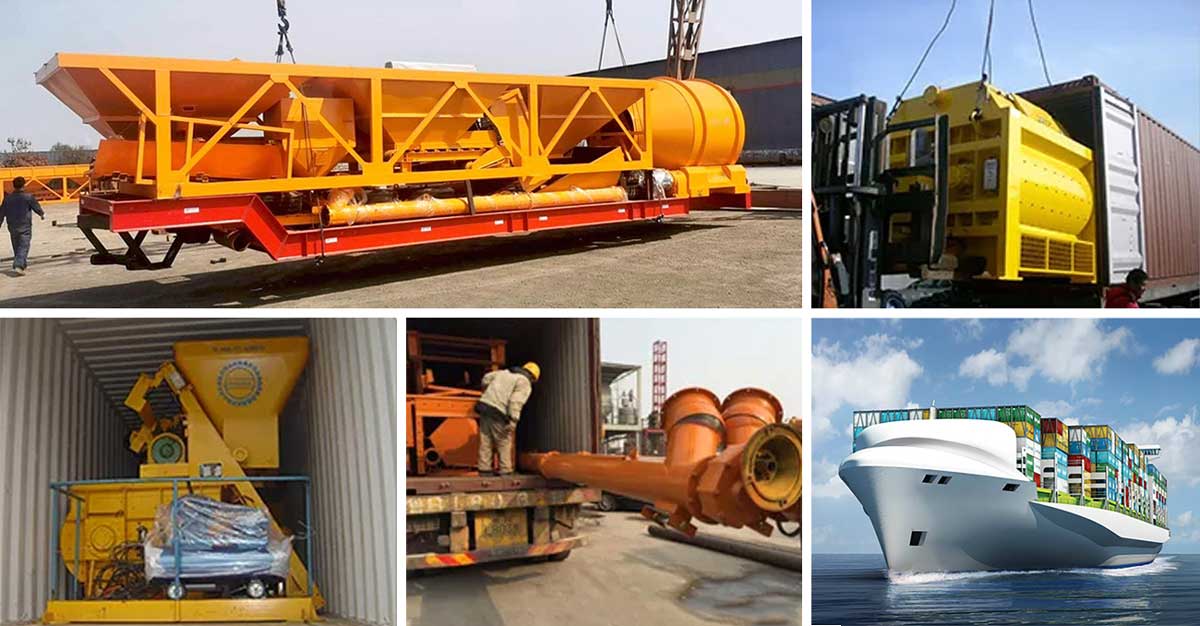

PACKAGING AND TRANSPORTATION

Packing Steel wire packing,wooden boxes packing and bare machine in container also available in bulk. Shipping Usually by sea, sometimes by land, air. Delivery Time: Within 15-20 working days after receiving payments. Payment Item: 30% of total price should be paid by T/T as advanced payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
