ZOOMJO - Concrete Trailer Pump

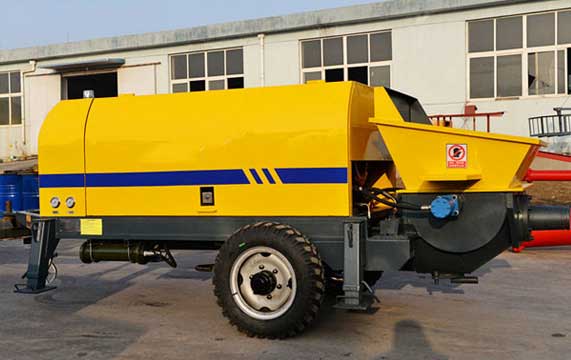

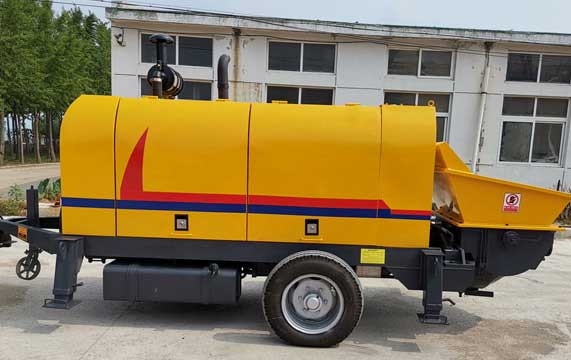

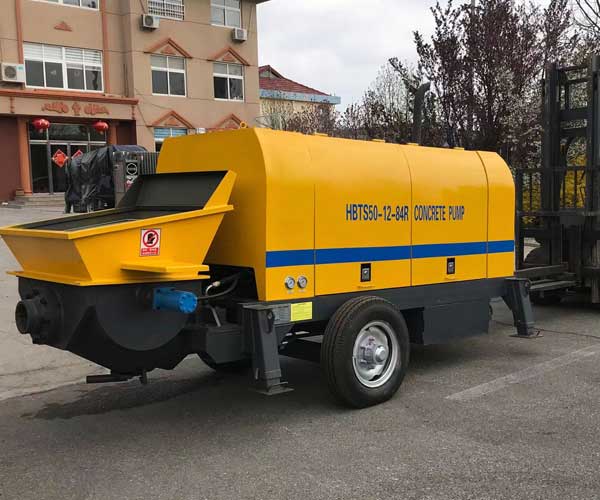

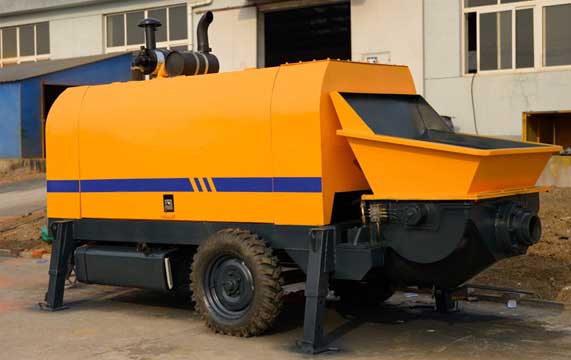

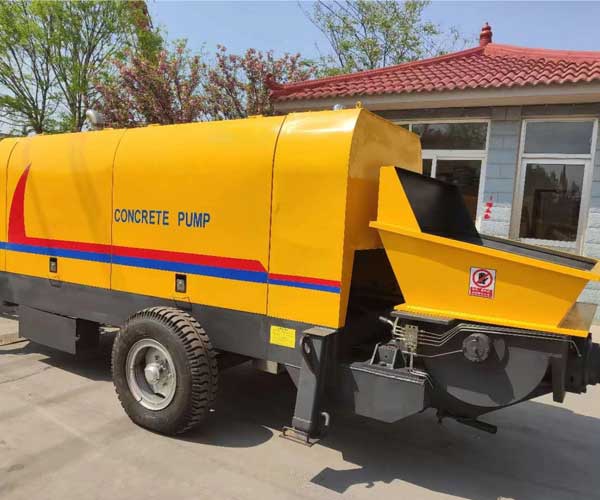

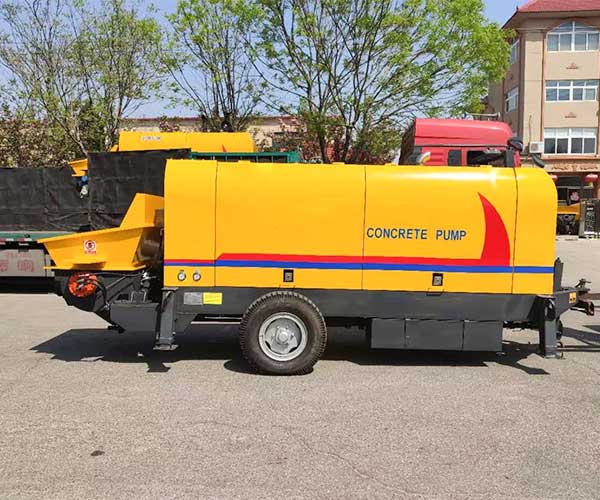

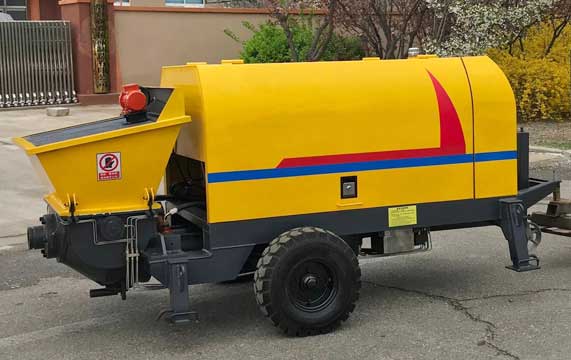

Concrete Trailer Pump

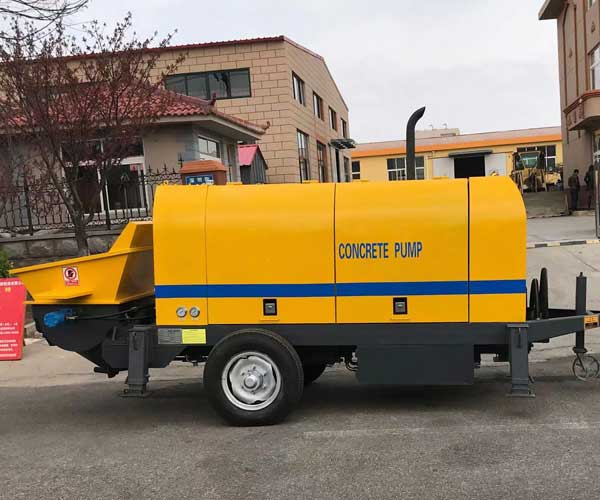

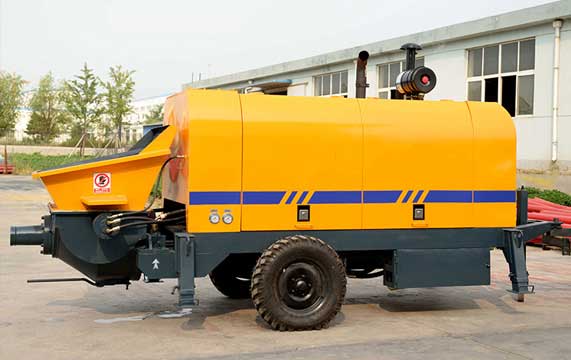

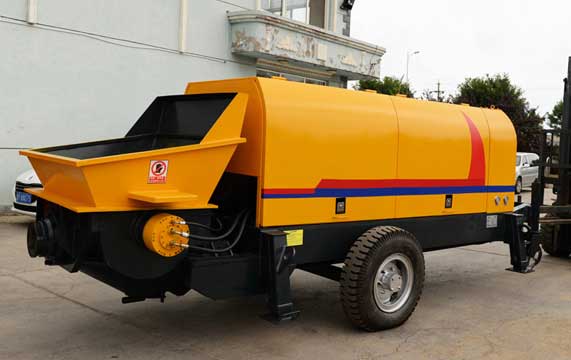

Concrete trailer pump, also known as stationary concrete pump, concrete transfer pump or concrete delivery pump, which is mainly composed of pump body and delivery pipe. It is a machine that uses pressure to deliver concrete continuously along a pipe and is mainly used in housing, bridge and tunnel construction, etc.

Power Type : Diesel and Electric type

Model : ZBT serise concrete pump

Max. theo. concrete output : 30m³/h 40m³/h 60m³/h 80m³/h 90m³/h

Transportation distance : Vertically 120-260m Level 500-1200m

Max. aggregate diameter : 25-50mm

CHAT NOW LEAVING MESSAGE SEND EMAIL

Product Structure Description

Product Advantages

Application Scenario

Technical Parameter

Packaging And Transportation

Customer Case

Serves

Inquiry

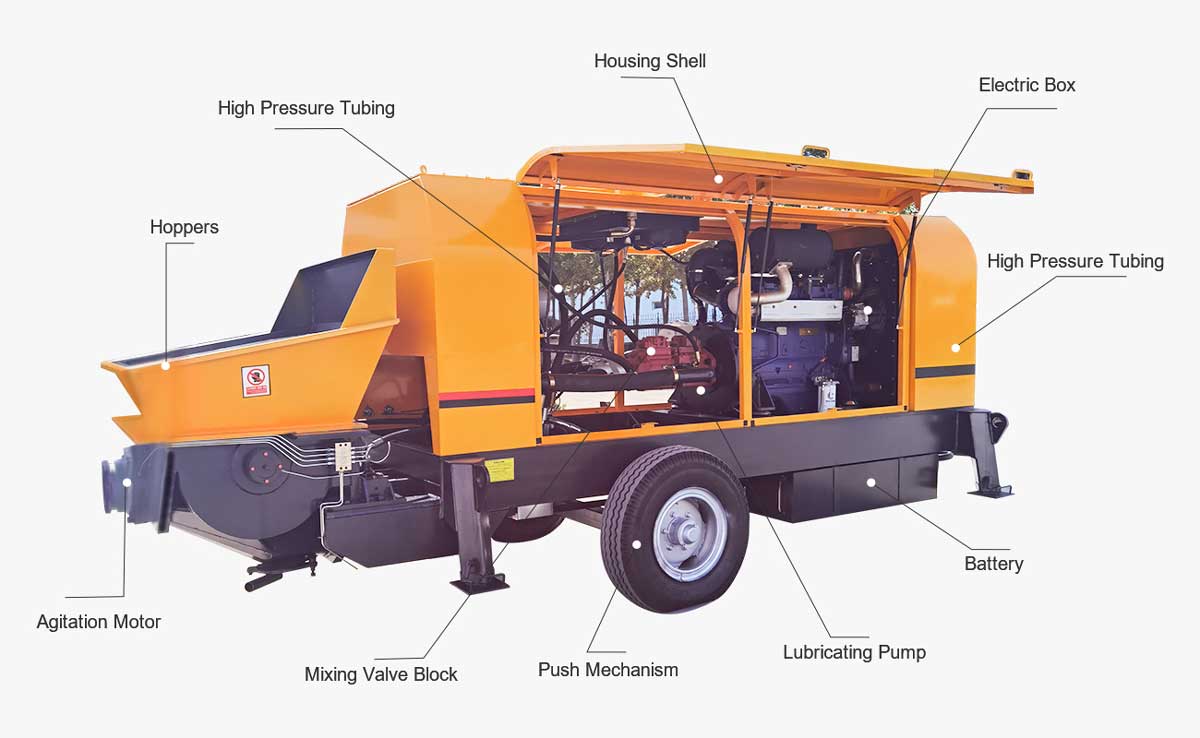

PRODUCT STRUCTURE DESCRIPTION

Zoomjo concrete pump is applicable on fine stone concrete conveying, floor heating construction, tunnel and underground construction, mortar conveying, used as spray pump when installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying, applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power, mining and national defense.

PRODUCT ADVANTAGES

1Reliable performance: adopt Italy hydraulic drive, which reduce reversing impact. S Valve system is easy for maintaining.

2Complete machine can be taken apart into two, easy to transport and install in mining construction location.

3Core parts are Korean Kawasaki original, equipment lifetime and quality is reliable

4Intelligent power control system to regulate the engine speed automatically, for smooth and efficient operation

5Plunger pump with constant power, to ensure the efficiency of main engineHigh-quality wear resistant alloy components for long

service-life, Air cooling system, without dependence of external water

6PLC system to ensure best control performance, Equipped with wired remote controller, easy to operate.

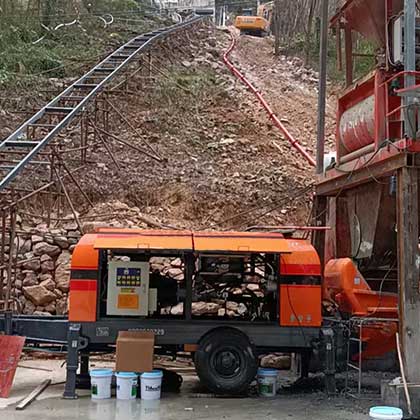

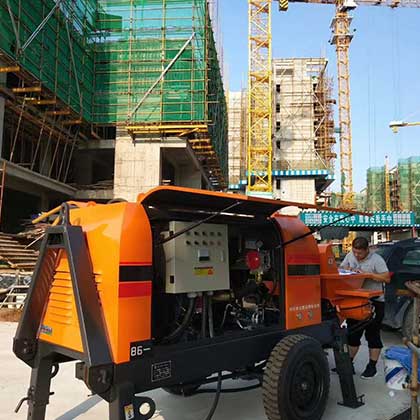

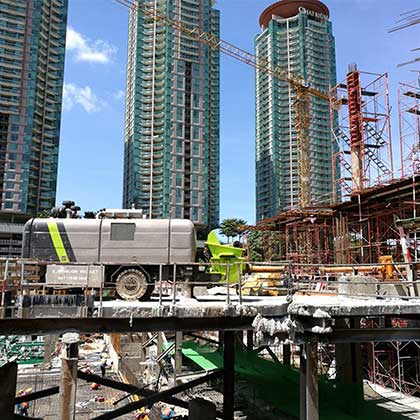

APPLICATION SCENARIO

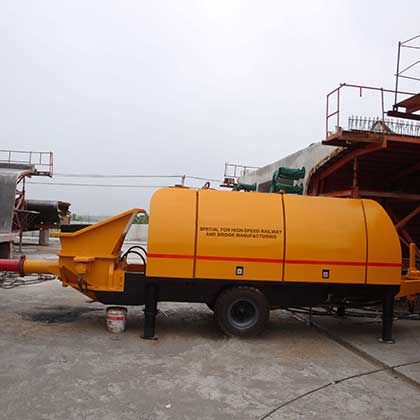

High-Speed Rail

Architecture

Bridge

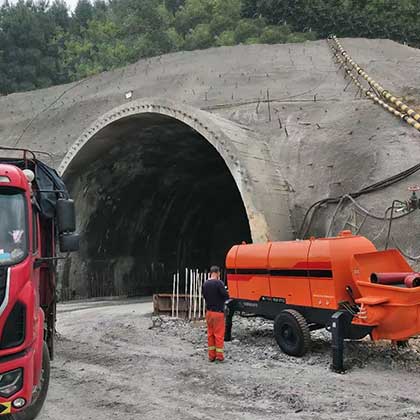

Tunnels and Culverts

Highway

Road Construction

CONCRETE TRAILER PUMP TYPE

Electric Type:

ZBT40D Electric Concrete Trailer Pump

Capacity: 40 m³/h

•Pumping Capacity: 40 m³/h

•Vertical Conveying Distance:120 m

•Horizontal Conveying Distance:500 m

Get a Free Quote

ZBT60D Electric Concrete Trailer Pump

Capacity: 60(m³/h)

•Pumping Capacity: 60 m³/h

•Vertical Conveying Distance:160 m

•Horizontal Conveying Distance:800 m

Get a Free Quote

ZBT80D Electric Concrete Trailer Pump

Capacity: 80(m³/h)

•Pumping Capacity: 80 m³/h

•Vertical Conveying Distance: 200 m

•Horizontal Conveying Distance: 800 m

Get a Free Quote

Diesel Type:

ZBT40C Diesel Concrete Trailer Pump

Capacity: 40(m³/h)

•Pumping Capacity: 40 m³/h

•Vertical Conveying Distance: 120 m

•Horizontal Conveying Distance: 500 m

Get a Free Quote

ZBT60C Diesel Concrete Trailer Pump

Capacity: 60(m³/h)

•Pumping Capacity: 60 m³/h

•Vertical Conveying Distance: 180 m

•Horizontal Conveying Distance: 1000 m

Get a Free Quote

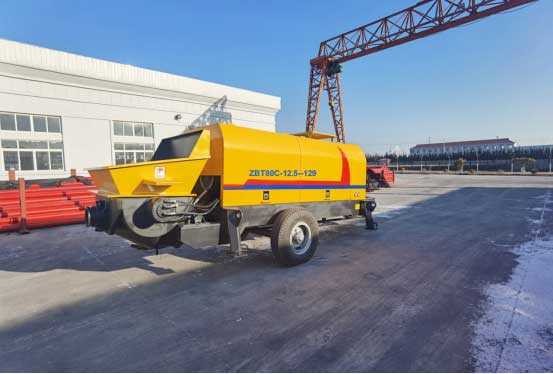

ZBT80C Diesel Concrete Trailer Pump

Capacity: 80(m³/h)

•Pumping Capacity: 80 m³/h

•Vertical Conveying Distance: 260 m

•Horizontal Conveying Distance: 1200 m

Get a Free Quote

TECHNICAL PARAMETER

Model	ZBT40C-12-66	ZBT60C-12--82	ZBT80C-12.5--129
Max. theo. concrete output (m3/h)	53/29	61/38	98/59
Max.concrete pumping pressure (MPa)	12/6	12/7	12.5/7.5
Distribution valve type	S	S	S
Concrete cylinder diameter*stroke(mm)	Φ180/1300	Φ200/1650	Φ200/1800
Hopper volume (m3)	0.6	0.7	0.8
Outlet diameter(mm)	Φ125	Φ180	Φ180
Electrical engineering power(KW)	66	82	129
Rotate speed(r/min)	2200	2200	2200
Pumping system pressure(MPa)	32	32	32
Mixing system pressure(MPa)	10	10	10
Max mixing speed(r/min)	25	25	25
Capacity of oil tank(L)	90	90	150
The biggest transportation is away from vertically(m)	120/500	180/1000	260/1200
Max. aggregate diameter(mm)	40	40	50
lnside diameter of delivering pipe(mm)	125	150	180
Dimensions:(LWH)(mm)	4800x1750x1900	4800x1750x1900	6000x2000x2200
Total weight(kg)	3500	4200	5800

PACKAGING AND TRANSPORTATION

Packing Steel wire packing,wooden boxes packing and bare machine in container also available in bulk. Shipping Usually by sea, sometimes by land, air. Delivery Time: Within 15-20 working days after receiving payments. Payment Item: 30% of total price should be paid by T/T as advanced payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
